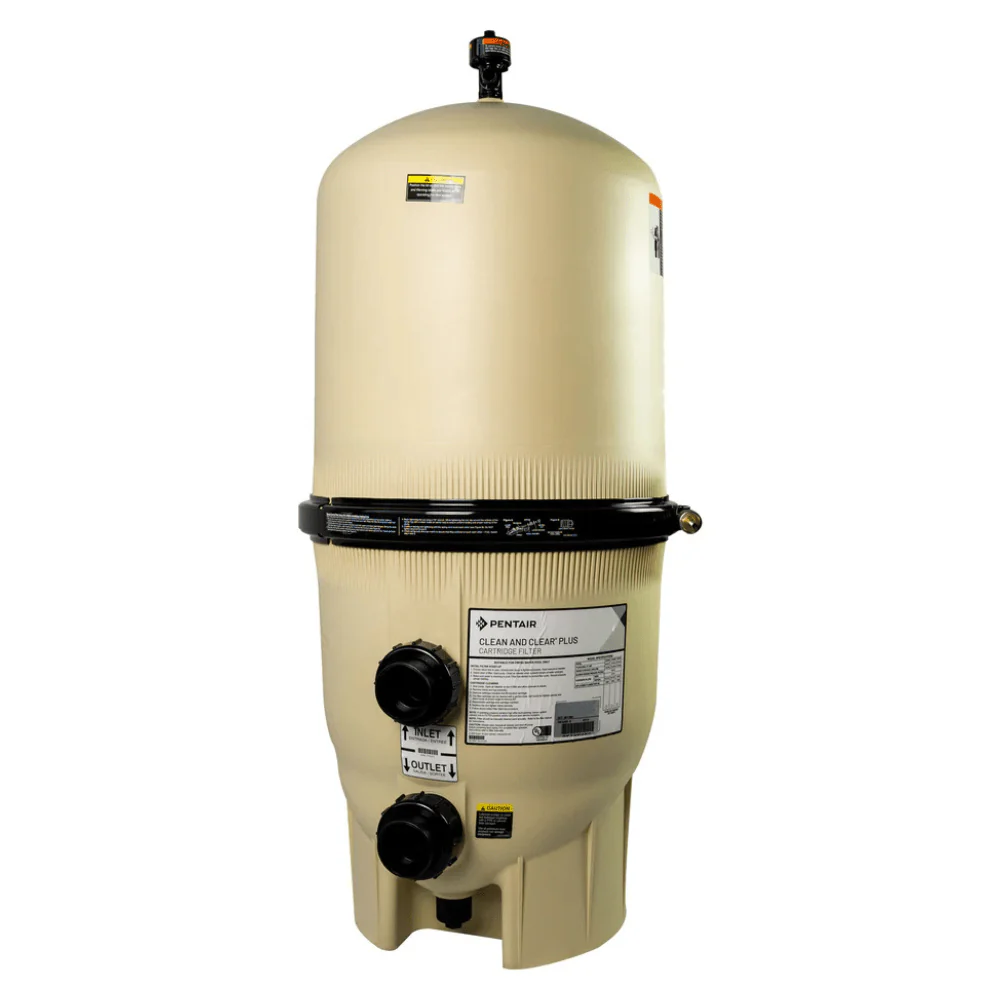

Pentair EC-160332 Clean & Clear Plus Multi Cartridge Filter, 520 Sq Ft

The Clean & Clear Plus Filters feature a corrosion-resistant, injection-molded tank known for its strength and durability. The filter system includes four easy-to-clean, non-woven polyester cartridges. Each filter also has a bulkhead union set, making installation simple and straightforward.

• Certified to NSF/ANSI Standard 50
• Large filter area for increased dirt capacity
• 1-1/2 in., 100% drain clean-out port
• Continuous High Flow™ Internal Air Relief*
• Base and plumbing kits available
• Injection-molded tank
• Balanced hydraulic flow
• Tension Control™ Clamp
• 100% factory tested
• Black bulkhead unions
• High-Flow manual air relief valve

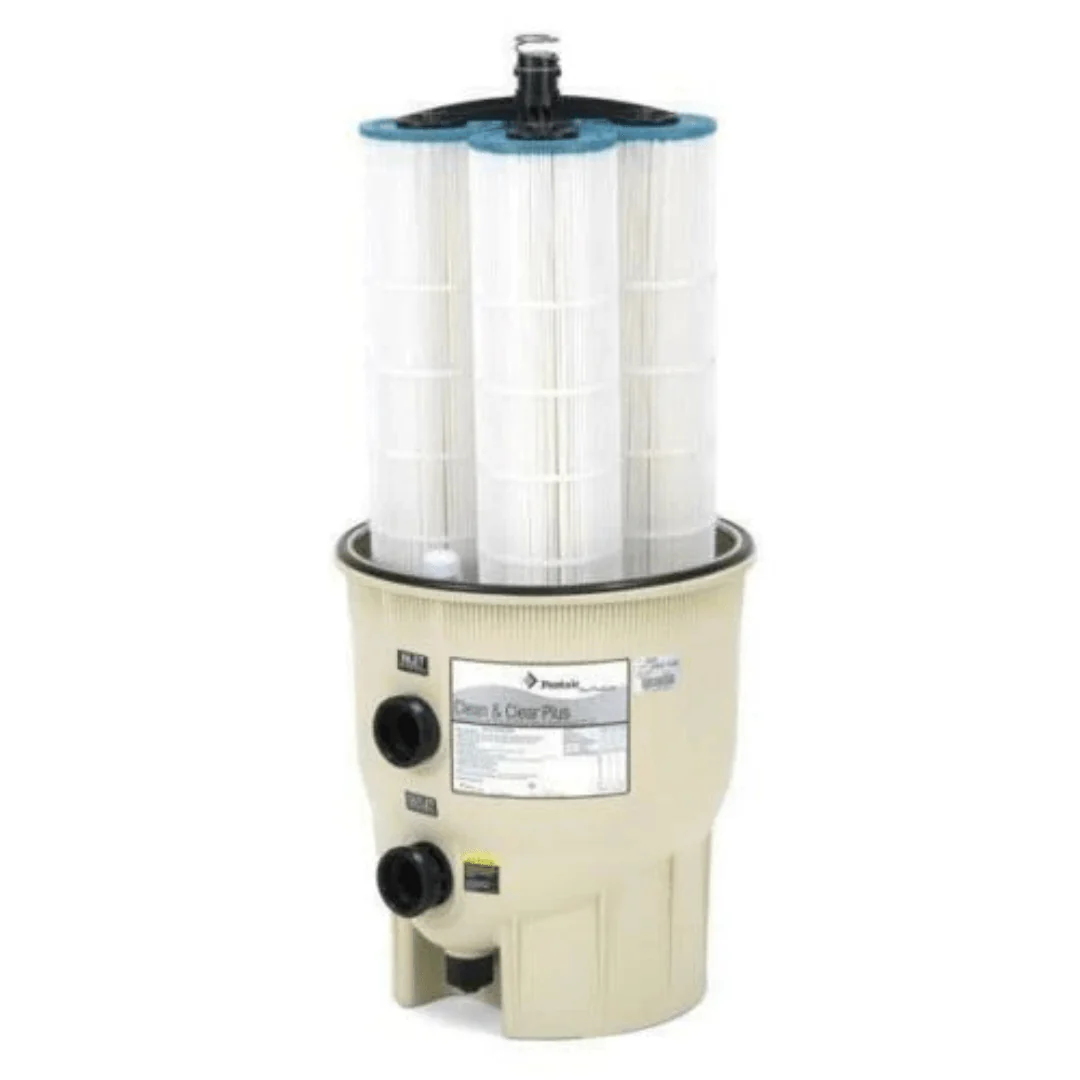

• Includes a filter system with four (4) cartridges

Specifications:

• Brand: Pentair
• Application: Pool, Spa
• Weight: 83 pounds
• Green or Energy-Efficient Product: True
• Standards Approvals: ANSI Standard 50 Certified
• Cartridges Required: 4 (included)
• Design Flow Rate: 150 gal/min
• Filtration Area: 520 square feet
• Side Clearance: 6 inch
• Turnover 10hrs: 90000 gallon
• Turnover 12hrs: 108000 gallon
• Turnover 8hrs: 72000 gallon
• Vertical Clearance: 74 inch

Support Documents:

• Product Brochure
• User Manual
• Product Cleaning Guide
• Replacement Parts

Series Specifications:

• 160310 CCP240 240 90 GPM
• 160340 CCP320 320 120 GPM
• 160301 CCP420 420 150 GPM
• 160332 CCP520 520 150 GPM
• EC-160340 CCP320, 320 120 GPM
• EC-160301 CCP420, 420 150 GPM
• EC-160332 CCP520, 520 150 GPM

Please Note: This pool filter ships via free LTL freight. Someone must be available to sign for delivery. You can view our full shipping policy here.
