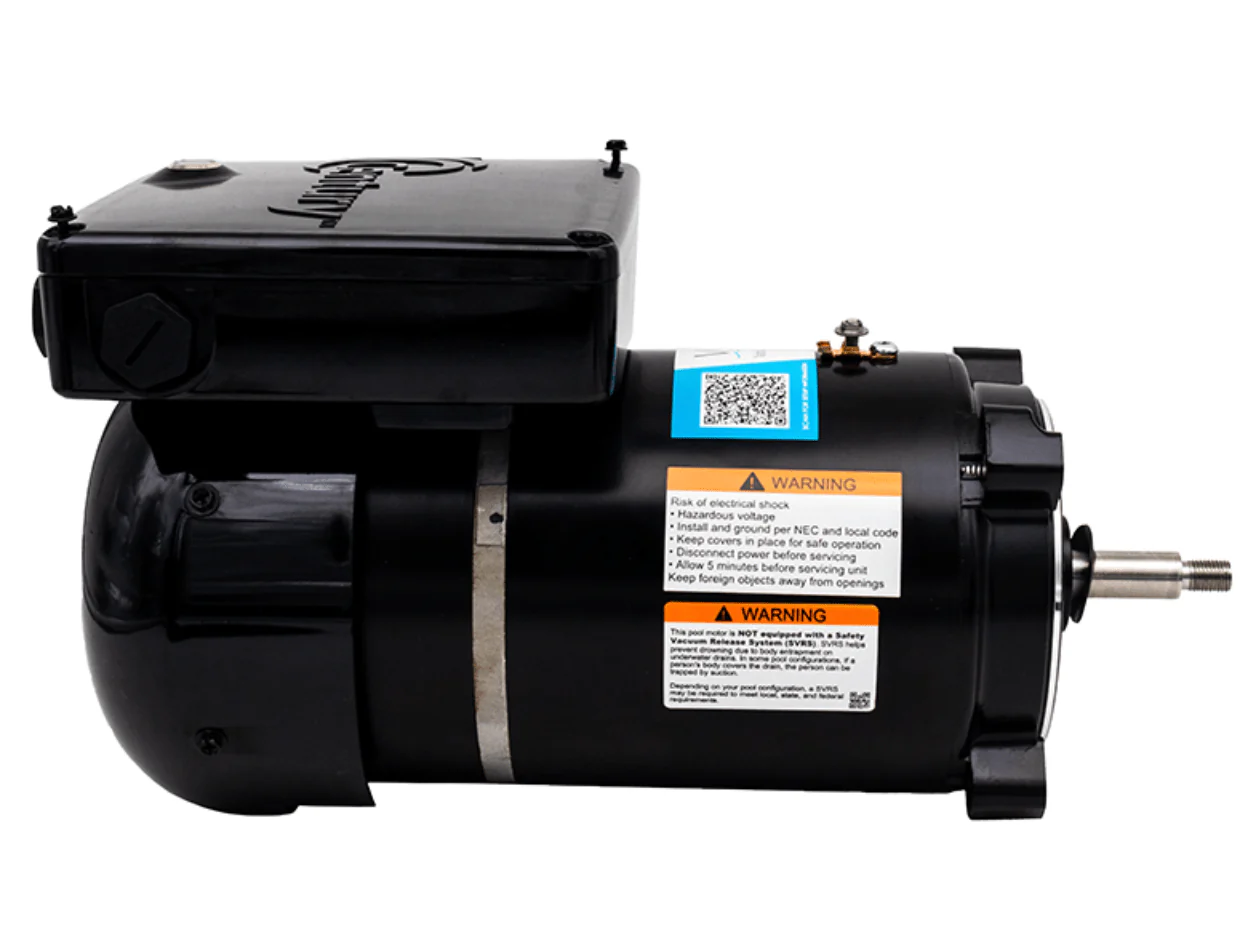

Century EVC225 VGreen Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 230/115 V, 56J Frame, TEFC
Century EVC225 VGreen® Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 50 Hz, 230/115 V, 56J Frame, TEFC
- 2.25 THP VGREEN EVO VS MOTOR C-FLANGE
- 115/230 VOLT 600 /3450 RPM CENTURY
Specifications:
| Phase: | 1 | Output HP: | 2.25/1.50 Hp |
| Output KW: | 1.7 kW | Voltage: | 230/115 V |
| Speed: | 600-3450 rpm | Service Factor: | 1 |
| Frame: | 56J | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Automatic | Ambient Temperature: | 50 °C |
| Frequency: | 50 Hz | Current: | 13.5/17.4 MAX A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | N |
| CE: | Y | Number of Speeds: | VAR |
Technical Specifications:
| Rotation: | Clockwise Lead End | Mounting: | Round |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Threaded |
| Frame Length: | 8.68 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 7/16-20 THREAD in |
Century EVC225 VGreen® Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 50 Hz, 230/115 V, 56J Frame, TEFC
- 2.25 THP VGREEN EVO VS MOTOR C-FLANGE
- 115/230 VOLT 600 /3450 RPM CENTURY
Specifications:
| Phase: | 1 | Output HP: | 2.25/1.50 Hp |
| Output KW: | 1.7 kW | Voltage: | 230/115 V |
| Speed: | 600-3450 rpm | Service Factor: | 1 |
| Frame: | 56J | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Automatic | Ambient Temperature: | 50 °C |
| Frequency: | 50 Hz | Current: | 13.5/17.4 MAX A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | N |
| CE: | Y | Number of Speeds: | VAR |
Technical Specifications:
| Rotation: | Clockwise Lead End | Mounting: | Round |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Threaded |
| Frame Length: | 8.68 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 7/16-20 THREAD in |
$679.99
Century EVC225 VGreen Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 230/115 V, 56J Frame, TEFC—
$679.99
Description
Century EVC225 VGreen® Variable Speed Pool Pump Motor, 2.25/1.5 HP, 1 Ph, 50 Hz, 230/115 V, 56J Frame, TEFC
- 2.25 THP VGREEN EVO VS MOTOR C-FLANGE
- 115/230 VOLT 600 /3450 RPM CENTURY
Specifications:
| Phase: | 1 | Output HP: | 2.25/1.50 Hp |
| Output KW: | 1.7 kW | Voltage: | 230/115 V |
| Speed: | 600-3450 rpm | Service Factor: | 1 |
| Frame: | 56J | Enclosure: | Totally Enclosed Fan Cooled |
| Thermal Protection: | Automatic | Ambient Temperature: | 50 °C |
| Frequency: | 50 Hz | Current: | 13.5/17.4 MAX A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | N |
| CE: | Y | Number of Speeds: | VAR |
Technical Specifications:
| Rotation: | Clockwise Lead End | Mounting: | Round |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | Threaded |
| Frame Length: | 8.68 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 7/16-20 THREAD in |
